CMM & Vision Fixtures

CMM & Vision Fixtures

The right fixture can make the difference between successful, repeatable measurements and a measurement failure. The right fixture solution can reduce measurement uncertainty, boost confidence in the results, and increase machine throughput. Our solutions ensure that you maximize your investment in your CMM and Vision Machines.

Prymefix

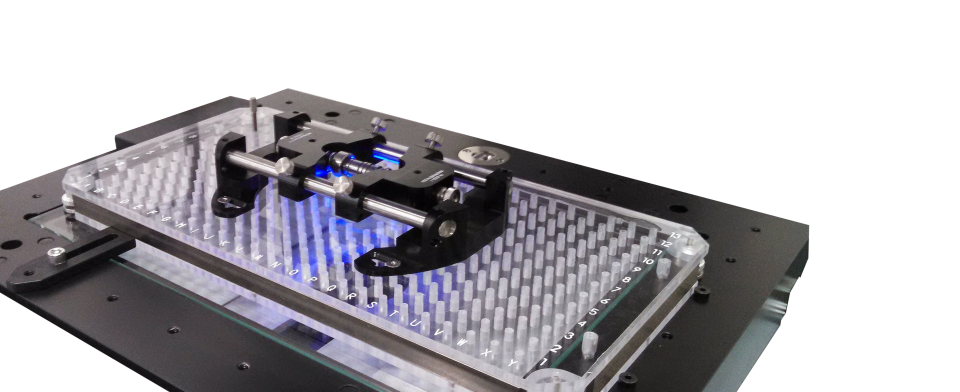

PrymeFix’s unique approach to fixturing is rooted in versatility. The magnetic corner nest allows for rapid changeover and repeatable locating of dedicated fixtures, drastically reducing the changeover time between set-ups in both CMM and Vision systems. It is also possible to have a single universal plate and that can be swapped with dedicated custom fixtures, as well. Utilizing the corner nest allows 100% interchangeability of plates without losing the reference point in the programs. Just swap a plate, load the program, and the part will be right where the machine expects it for a base alignment.

Learn More

LET’S TALK THROUGH YOUR PRINTS

Contact us today to get started on identifying the best inspection tools for your application!
